Product Description

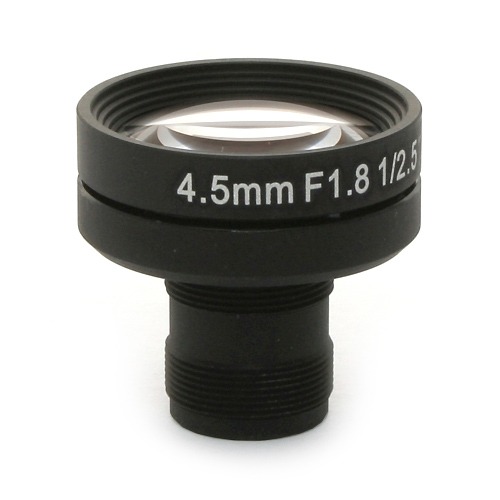

The S-Mount lens Lensagon BM4518S125ND is suitable for common sensors up to 3 megapixel with an image format of 1/2.5 inch. It is characterized by a particularly high light intensity.
| Mount | S-Mount |
|---|---|
| Sensor | 1/2.5 inch |
| Focal Length | 4.50 mm |
| Aperture (f#) | 1.80 |
| MOD | 0.20 m |
| Back Focal Length | 6.14 |
| Angle of View (D) | 76.40° / H: 66.00° / V: 51.00° |
| Megapixel (max.) | 3.00 MP |
| IR Correction | Yes |
| Optical Distortion | 1.90 % |
| Weight | 14.80 g |
| Iris | fixed |
| Focus | fixed |
| Chief ray angle | 10.00 ° |
| Typ | Standard |
